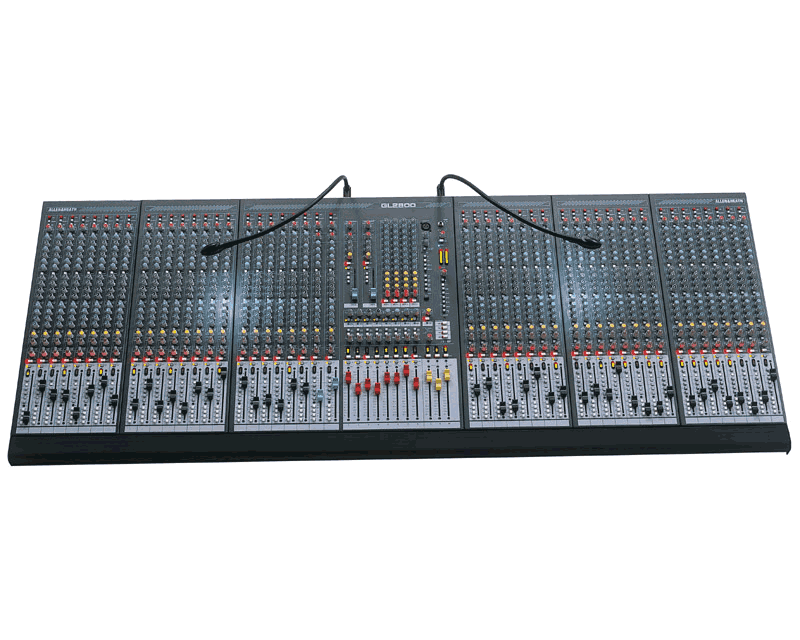

-Allen & Heath GL2800-848 analógový mixpult

Mixážny pult s dvojitou funkciou je odvodený od klasickej GL série, ktorá patrí medzi najpopulárnejšie série mixážnych pultov. Lesk tejto novej série potvrdzuje, že všetky skúsenosti a vedomosti pri dizajnovaní sa pretavili do tejto úžasnej konzoly.

GL2800 je navrhnutý pre živé použitie v akejkoľvek situácii, či už v divadlách, koncertných halách, kostoloch, na festivaloch, štadiónoch, atď.

Features

• 48 channel frames
• LR and M mix buses
• 8 Audio groups with pan and routing to LR and M
• 10 Auxes including a dedicated stereo send
• 2 multifunction stereo channels each with mic and stereo line inputs
• 2 dual stereos provide an extra 4 summed or independent stereo returns
• Fully featured 12x4 Matrix
• Proper dual functionality for FOH/Monitor mixing
• Recording capable with channel direct outputsa
• M can be used for LR mono sum, engineers wedge, or centre/sub mix
• Matrix external inputs with level trims and common input capability
• Stereo channel mic inputs can cross patch into matrix for ambience feed
• Responsive 4 band, 2 sweep EQ
• 100Hz channel high pass filters
• Individual phantom power and polarity switching
• Wide angle channel and master meters
• Dedicated stereo monitor meters
• Per channel pre/post fader aux switching for full flexibility

• Recessed pre/post-EQ aux switching per channel
• `Internal jumper plugs for aux, direct out and other options
• Mutes on all fader masters
• 100mm dust protected faders
• Assignable talkback to all outputs
• 1kHz oscillator / pink noise generator with external output
• 2-track monitoring and replay to LR
• 3 headphones/earpiece sockets and local monitor outputs
• Electronically balanced XLR outputs with +26dBu drive capability
• Preamp 74dB range with +34dBu input capability for mic or line
• Ultra low noise mix head amp design
• Uses external linear power supply
• Built-in combiner for redundant backup supply
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Solid copper bus bar grounding
• Sys-Link V2 console linking option
• 4-pin lamp sockets
